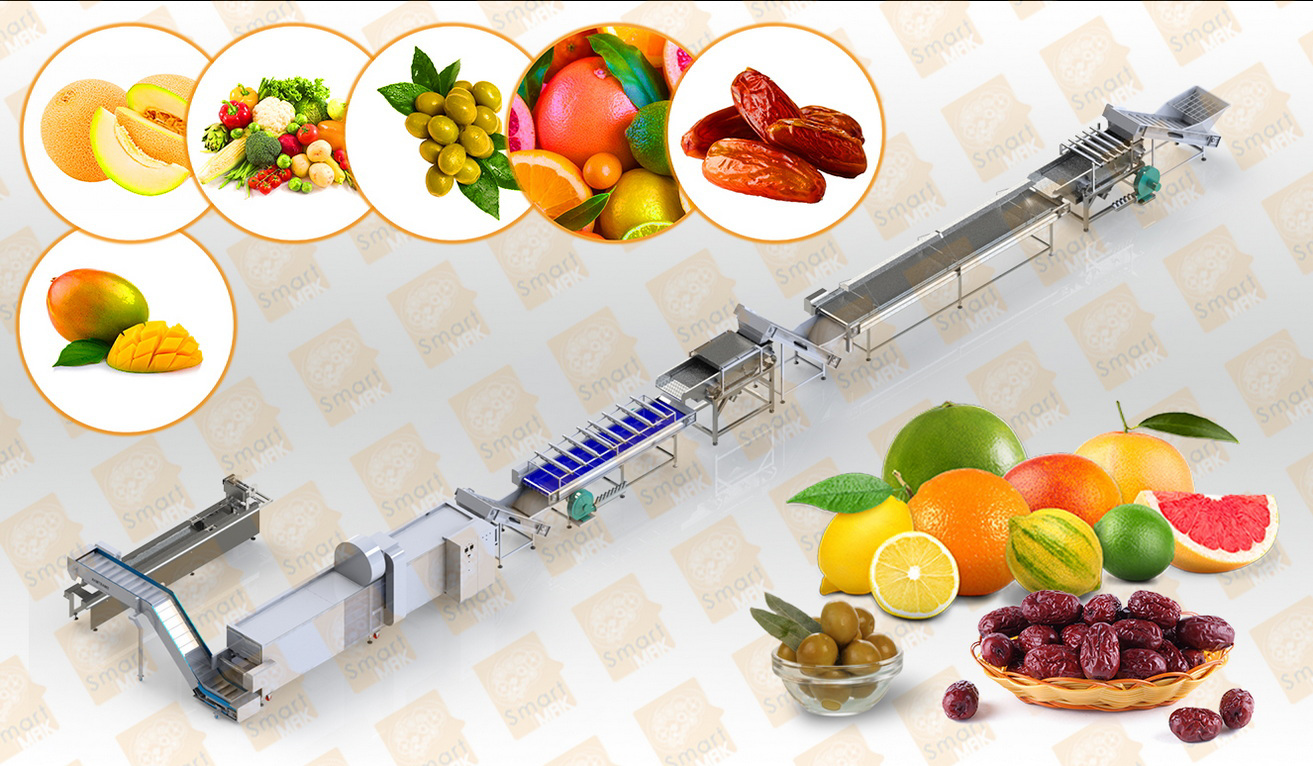

Dates Washing and Packing Line

Description

The Dates Washing and Cleaning Line from SmartMak™ performs the process of cleaning dates and purifying them from impurities and sticks, in addition to sterilizing dates, which ensures that dates are clean, sterilized and ready for packaging.

Dates Washing and Sterilization Line:

The Dates Washing and Cleaning Line is considered one of the commercial and industrial food processing equipment, from SmartMak™ one of the most important Food processing equipment manufacturers.



The Dates Washing and Cleaning Line from SmartMak™ is characterized by a very high productivity of up to 3.5 tons per day, thanks to the high compatibility between mechanical operations within the machines that make up this line, and the line guarantees obtaining sterile, clean dates ready for any subsequent operations, whether packing or direct sales, and the line is also suitable for cleaning several materials such as citrus and vegetables.

The line has been designed to work continuously without stopping with maintaining precision in work, and is characterized by ease of cleaning and maintenance.

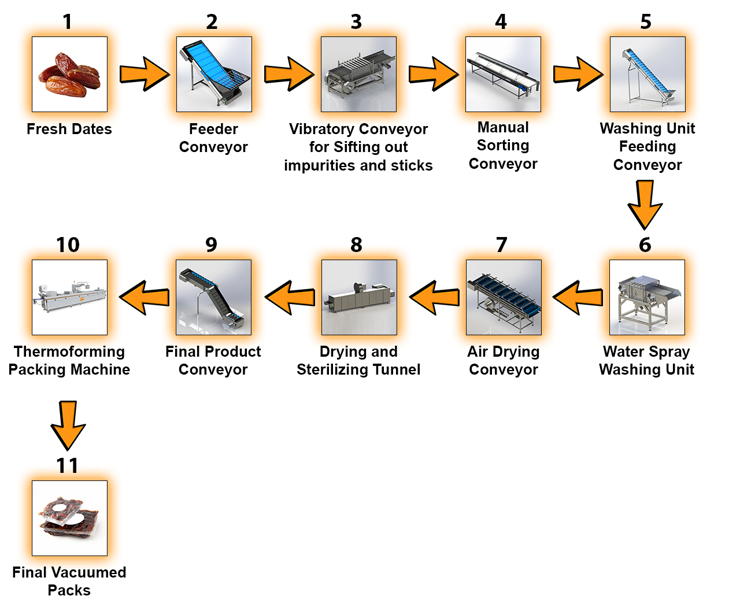

Flowchart - Date Washing and Packing Line

Flowchart - Date Washing and Packing Line

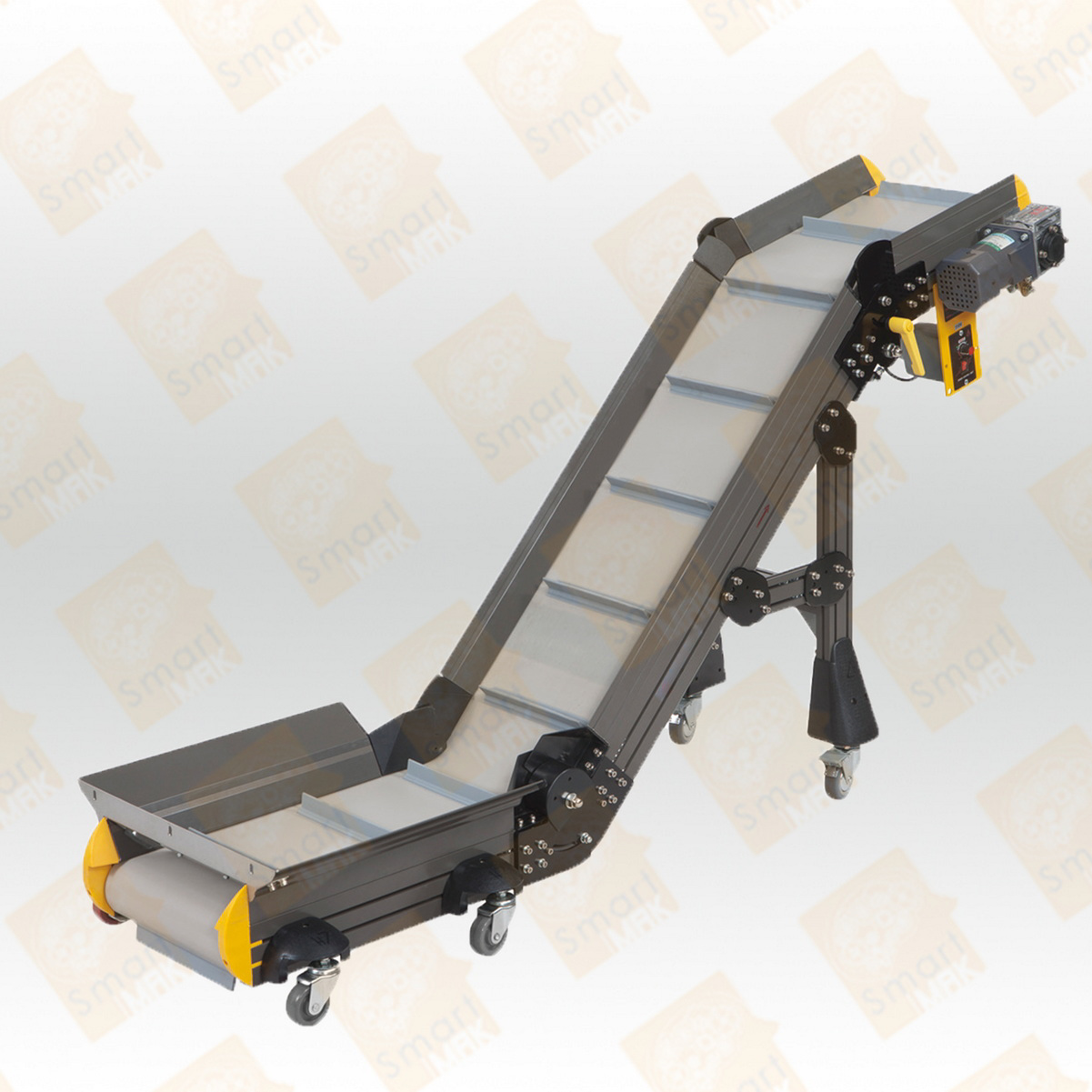

The work begins with dates of different types and sizes, which is fed to the line through a conveyor belt, which transfers it to a specially designed vibrator to get rid of the impurities and sticks that may be found between the dates, then the dates pass through the quality control and manual sorting conveyor, which is equipped with overhead lights to facilitate the exclusion of any dates which are not valid by workers deployed on both sides of the line, then the dates are transferred via a conveyor belt to the water spray washing unit, which sprinkles cold or hot water over the dates with constant vibration to ensure that the dates are turned over and washed from all directions, then the washed dates pass through the air-drying process that aims to dry them from the washing water, then it goes to the drying and sterilization tunnel, which ensures that the dates are dried and sterilized from germs and agricultural pests, and it also softens the dates, which helps them to fill them later if desired. finally; the clean and sterilized dates are moved to the final product conveyor which give us the final product.

Technical Information:

  • Machine structure: Made of Food grade Stainless Steel (L 304)
  • Electrical Specifications: 3 Phase | 380 V | 50-60 Hz
  • Mechanical Parts: Made of Food grade Stainless Steel (L 304), only motors and some mechanical parts are made of aluminum, steel and copper
  • Bearing: SKF
  • Engines and Gearboxes: Turkish industry with German distinction
  • Main Controller: Omron
  • Touch Screen and Control: Omron touch screen control – It controls all operations of the machine, and includes four different languages
  • Pneumatic Control Systems: Festo

Materials:

Production Lines Accessory:

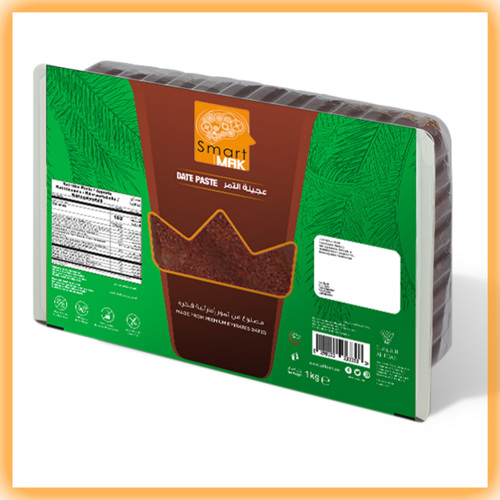

Final Product Shape:

Interior Parts Manufacturers:
